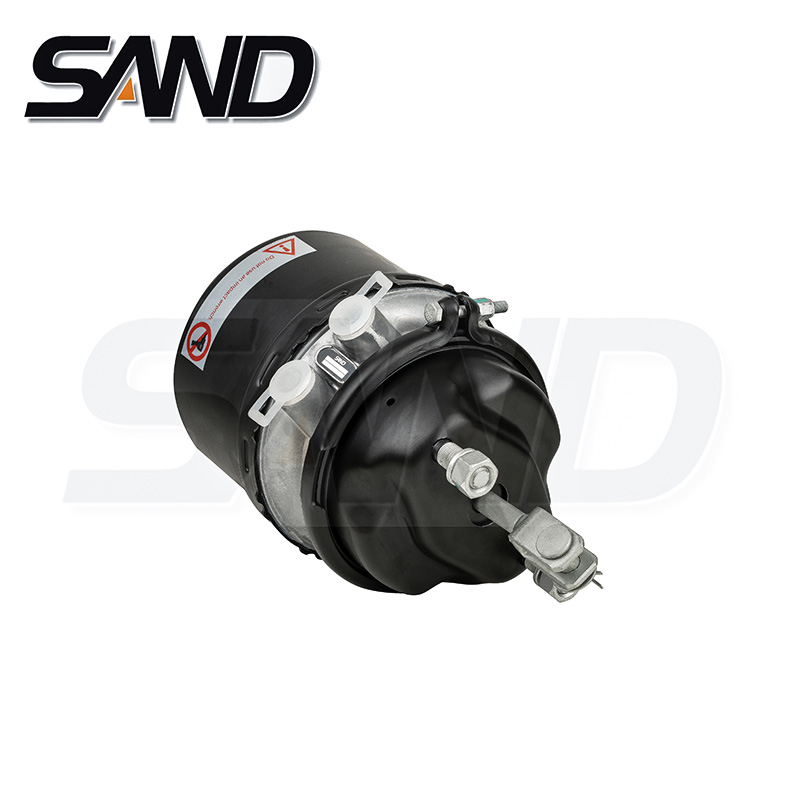

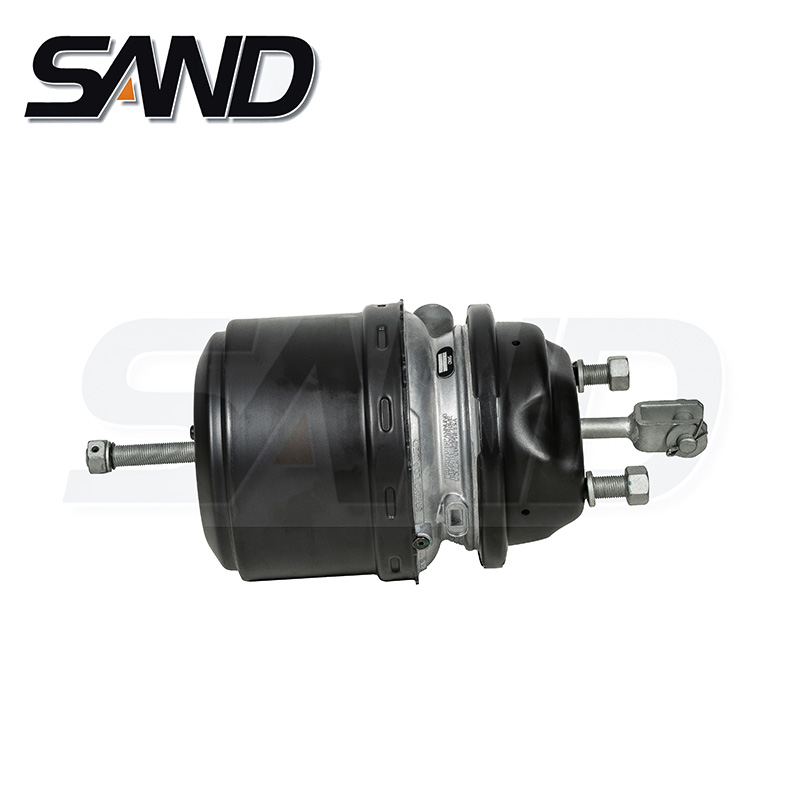

Zavareni S-brog

TIP	SD BROJ	OE KNORR/WABCO	BROJ DIJELA	M	α	β	F	L1	L2	VOZILO
Q16/24W	SD96003W	9254241000	100.020.022 A0124200018	M22*1,5VOSS	0	45	7800		187	DAIMLER
	SD96003W07	9254949100	A0194208718		105	-165	7900		37
	SD96003W08	9254949110	A0194208818		-105	165
Q20/24W	SD96004WA	9254207500 9254207010 9253207010	1506383 81504106561 81504106615 81504106607 81504106683 81504106427 81504106312 81504106310 81504106348 81504106512 81504106308 81504106309	M16*1,5	0	45	8750		75	DAF  ČOVJEK NEOPLAN
Q24/24W	SD96005W02	9254919000 9254219000	A0194209118 A0164201418	M22*1,5VOSS	105	-165	7800		37	BENZ
	SD96005W05	9254911050	A0194207718		55	180	8000		187
	SD96005W13	9254213460	1199429	M16*1,5	-90	-150	8000		112	BENZ  DAF VDL BUS
	S D96005WA	9254217500	81504106540 81504109540 81504106620 81504106684	M 22*1,5VOSS	0	45	8900		75	ČOVJEK
	SD96005WA 1	9254217510	81504106551 81504109551 81504106609 81504106619 1523549		90	-45	8900		200	MAN NEOPLAN DAF
Q30/24W	SD96008W	9254920010		M16*1,5	0	-105	8000		58	DAIMLER
Q24/30W	SD96001W01	9254914400	A 020 420 0118	M22*1,5VOSS K1	-105	165	10800		37	BENZ
	SD96001W05	9254215400 9254214500		M22*1,5VOSS	0	45	10800		75
	SD96001 W 07	9254214520 9254215420	81504106629 81504106633		90	-45			200	M AN NEOPLAN
Q27/30W	SD96009W01	9254290610 9254290617	1603234 1270272	M16*1,5	45	135	10600		85	DAF
	SD96009WA	9254290200			0	180	12000		85叉
Q30/30W	SD96002W	9254221200		M22*1,5VOSS	0	45	10800		75
	SD96002W01	9254922030	A0194208118		-30	-15			37	BENZ
	SD96002W03	9254922090	A0194208518		-55	180			187	BENZ
	SD96002W05	9254929020		M22*1.5VOSS T	105	-165			37
	SD96002W07	9254324800	5010260189	M16*1,5	0	-135			300
	SD96002W08	9254324810	5010260186		0	45			86
	SD96002WA	9254224340			0	-135	12200		265.5
	SD96002WA1	9254221500	1602676	M22*1.5VOSS	-75	90			50
	SD96002WA3	9254221340		M16*1,5	-30	90			86
Q30/30W3	SD96203L	9254921040		M16*1,5	-35	145	10800		53
